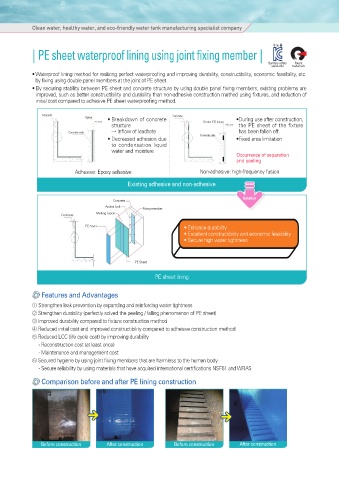

| PE sheet waterproof lining using joint fixing member |

Sanitary safety Patent
standards trademark
• Waterproof lining method for realizing perfect waterproofing and improving durability, constructibility, economic feasibility, etc.
by fixing using double panel members at the joint of PE sheet
• By securing stability between PE sheet and concrete structure by using double panel fixing members, existing problems are
improved, such as better constructibility and durability than non-adhesive construction method using fixtures, and reduction of
initial cost compared to adhesive PE sheet waterproofing method.

Concrete Concrete
Epoxy
• Breakdown of concrete Circular STS fixture • During use after construction,
structure the PE sheet of the fixture
→ Inflow of leachate has been fallen off.
Concrete side Concrete side
• Decreased adhesion due •Fixed area limitation
to condensation liquid
water and moisture
Occurrence of separation
and peeling
Adhesive: Epoxy adhesive Non-adhesive: high-frequency fusion

Existing adhesive and non-adhesive

Solution
Concrete
Anchor bolt
Fixing member
Concrete Melting fusion
PE cover • Enhance durability
• Excellent constructibility and economic feasibility
• Secure high water tightness

PE Sheet

PE sheet lining

Features and Advantages
① Strengthen leak prevention by expanding and reinforcing water tightness
② Strengthen durability (perfectly solved the peeling / falling phenomenon of PE sheet)
③ Improved durability compared to fixture construction method
④ Reduced initial cost and improved constructibility compared to adhesive construction method
⑤ Reduced LCC (life cycle cost) by improving durability
- Reconstruction cost (at least once)
- Maintenance and management cost
⑥ Secured hygiene by using joint fixing members that are harmless to the human body
- Secure reliability by using materials that have acquired international certifications NSF61 and WRAS

Comparison before and after PE lining construction

Before construction After construction Before construction After construction
