Clean water, healthy water, and eco-friendly water tank manufacturing specialist company

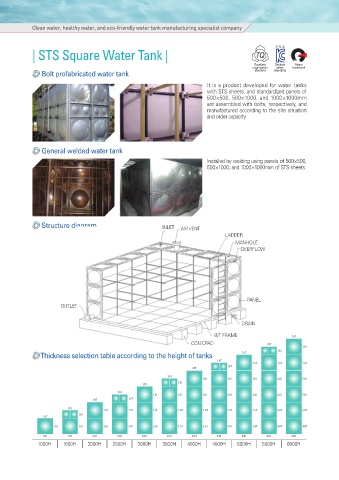

| STS Square Water Tank |

Excellent Sanitary Patent
organization standards trademark
safety
standard
Bolt prefabricated water tank
It is a product developed for water tanks
with STS sheets, and standardized panels of
500×500, 500×1000, and 1000×1000mm
are assembled with bolts, respectively, and
manufactured according to the site situation
and order capacity

General welded water tank
Installed by welding using panels of 500×500,
500×1000, and 1000×1000mm of STS sheets.

Structure diagram INLET AIR VENT

LADDER
MANHOLE
OVERFLOW

PANEL
OUTLET

DRAIN

B/T FRAME 1.5T
CON'CPAD 1.5T
1.5T
1.5T
1.5T
Thickness selection table according to the height of tanks
1.5T
1.5T 1.5T 1.5T
1.5T
1.5T
1.5T
1.5T 1.5T 1.5T 2.0T 2.0T
1.5T
1.5T
1.5T
1.5T 1.5T 1.5T 2.0T 2.0T 2.5T 2.5T
1.5T 1.5T
1.5T
1.5T 1.5T 1.5T 2.0T 2.0T 2.5T 2.5T 3.0T 3.0T
1.5T
1.5T
1.5T 1.5T 2.0T 2.0T 2.0T 2.5T 2.5T 3.0T 3.0T 4.0T 4.0T
1.5T 1.5T 2.0T 2.0T 2.0T 2.5T 2.5T 3.0T 3.0T 4.0T 4.0T
1000H 1500H 2000H 2500H 3000H 3500H 4000H 4500H 5000H 5500H 6000H
