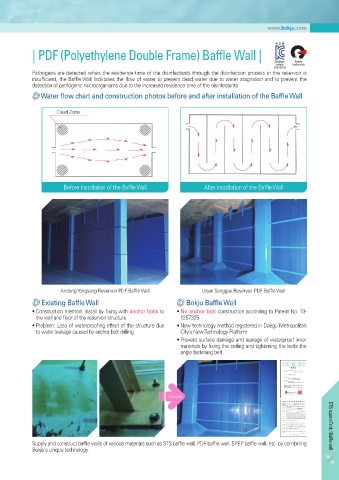

P. 17

www.bokju.com



            | PDF (Polyethylene Double Frame) Baffle Wall |

                                                                                                  Sanitary   Patent
                                                                                                  safety
                                                                                                 standards  trademark
            Pathogens are detected when the residence time of the disinfectants through the disinfection process in the reservoir is
            insufficient, the Baffle Wall facilitates the flow of water to prevent dead water due to water stagnation and to prevent the
            detection of pathogenic microorganisms due to the increased residence time of the disinfectants
                Water flow chart and construction photos before and after installation of the Baffle Wall


                     Dead Zone














                       Before installation of the Baffle Wall            After installation of the Baffle Wall





















                      Andong Yongsang Reservoir PDF Baffle Wall         Ulsan Sanggae Reservoir PDF Baffle Wall
                Existing Baffle Wall                               Bokju Baffle Wall

            •  Construction method: Install by fixing with anchor bolts to   •  No anchor bolt construction according to Patent No. 10-
              the wall and floor of the reservoir structure     1257325
            •  Problem: Loss of waterproofing effect of the structure due   •  New technology method registered in Daegu Metropolitan
              to water leakage caused by anchor bolt drilling   City’s New Technology Platform
                                                               •   Prevent surface damage and leakage of waterproof inner
                                                                materials by fixing the ceiling and tightening the bolts the
                                                                angle fastening belt








                                                            Solution








            Supply and construct baffle walls of various materials such as STS baffle wall, PDF baffle wall, SPEP baffle wall, etc. by combining   STS square Tank / Baffle wall
            Bokju's unique technology.
